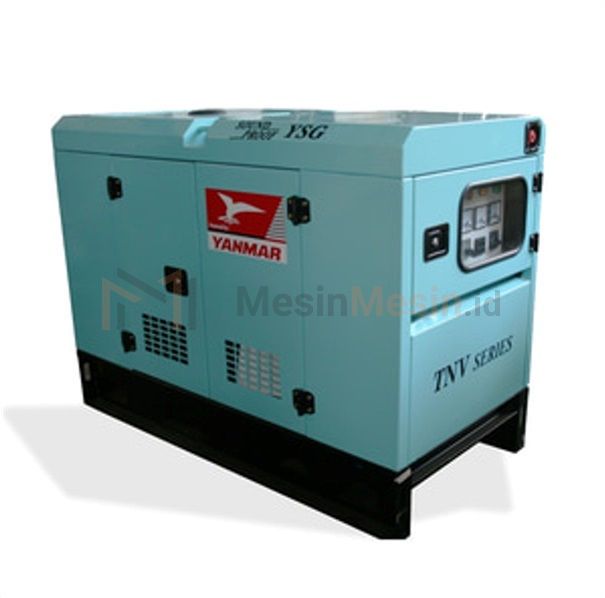

| GENERATOR |
Model |
YSG-10S |
| Frequency
(Hz) |
51 Hz : 1500 rpm |
| Output |
Standby |
(KVA) |
17 |
| (KW) |
13,6 |
| HP |
22,6 |
| Prime |
(KVA) |
15 |
| (KW) |
12 |
| HP |
17,17 |
| Excitation |
Brushless,with
self-exitation Shunt |
| Voltage
regulation |
A.V.R |
| Phase/Wire |
3-phase-4wire |
| Power
factor |
80% Langging |
| Voltage |
AC 220-480 V as
reqired Voltage regulation 1,5% (setting) |
| Type
inslution |
( Class H ) |
| No.of
pole |
4 poles |
| Noise dengan jarak 7m tanpa beban (dB) |
56-58 |
| ENGINE |
Model |
4TNV88 |
| Type |
Vertical,Water-cooled,4-cycle
diesel |
| No.of
Cylinders |
4 |
| Bore
x Stroke |
88x90 |
| Displacement
(cc) |
2190 |
| Fuel
tank capacity (it) |
57 |
| Lube
Oil Capacity |
7,5 |
| Fuel
type |
Diesel |
| Combustion
system |
Direct injection |
| Strating
system |
Electric starting
motor |
| Cooling
system |
Radiator with fan |
| Lubrication
system |
Forced lubrication
via trochoid pump |
| Aspiration |
NA |
| Revolutions
(rpm) |
1500 |
| Motor
starting – DC |
12 V |
| UNIT |
Approx
Dimension (mm) |
L (mm) |
1700 |
| W (mm) |
800 |
| H (mm) |
1200 |
| Approx Dry weight (kg) |
730 |
