| Model |

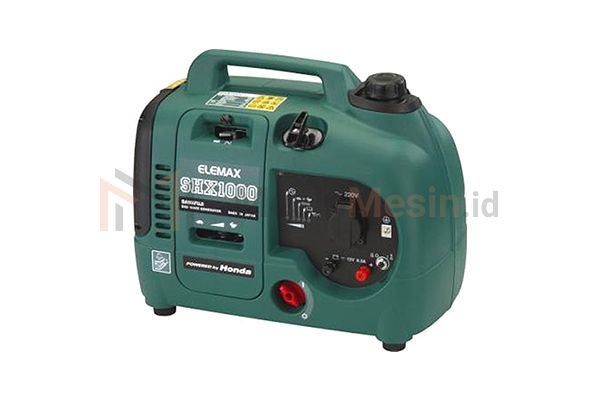

SHX 1000 |
| Tipe |
R |
| Generator |
Frekuensi (Hz) |
50 |
| Kecepatan Mesin (rpm) |
5800/4100 (Power Mode/Silent Mode) |
| Tipe Gelombang |
Square-Wave |
| AC Output |
Hasil Max (w) |
1000 |
| Hasil rata-rata (w) |
900 |
| Voltase rata-rata |
220 |
| DC Output |
Only for Charging Output 12 V Automotive Betteries |
| Maximum Charging Output = 8,3/4,2A (Power Mode/Silent Mode) |
| Insulation class |
B |
| Mesin |
Pembuat |
HONDA |
| Model |
GXH50 |
| Tipe |
Air Cooled OHV 4-stroke Gasoline |
| Kapasitor Cilinder (CC) |
49,4 |
| Lainnya |
LxWxH (mm) |
465x265x380 |
| Berat Bersih (kg) |
13,6 |
| Kapasitas Tangki (liter) |
3,8 |
| Ukuran suara |
(dB(A)/7m) |
58(1/2 load) |
| (dB Lwa) |
89(1/2 load) |
| Jam Operasional Berkelanjutan (Jam) |
5,5(rated load) 8,6(1/2 load) |
| Lampu Percobaan |
LED |
| Lampu Indikator |
LED |
| Sistem Peringatan Oli |
YES |
| Tombol Stop |
Interlocking with Fuel Cock |
| AC |
Output |
Plug Socket X 1 |
| perangkat projektif |
Control Circuit |
| DC |
Output |
Terminal |
| perangkat projektif |
Thermal Type Circult Breaker |
