Product Info:

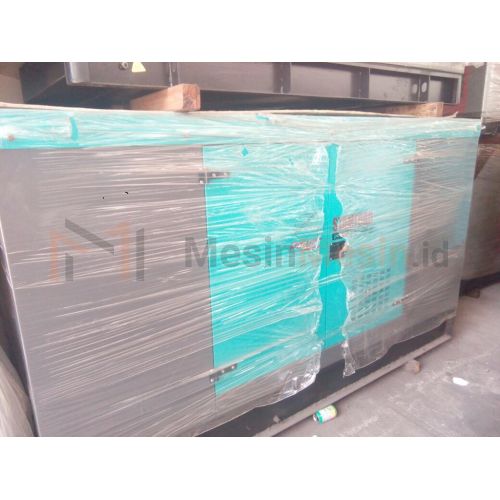

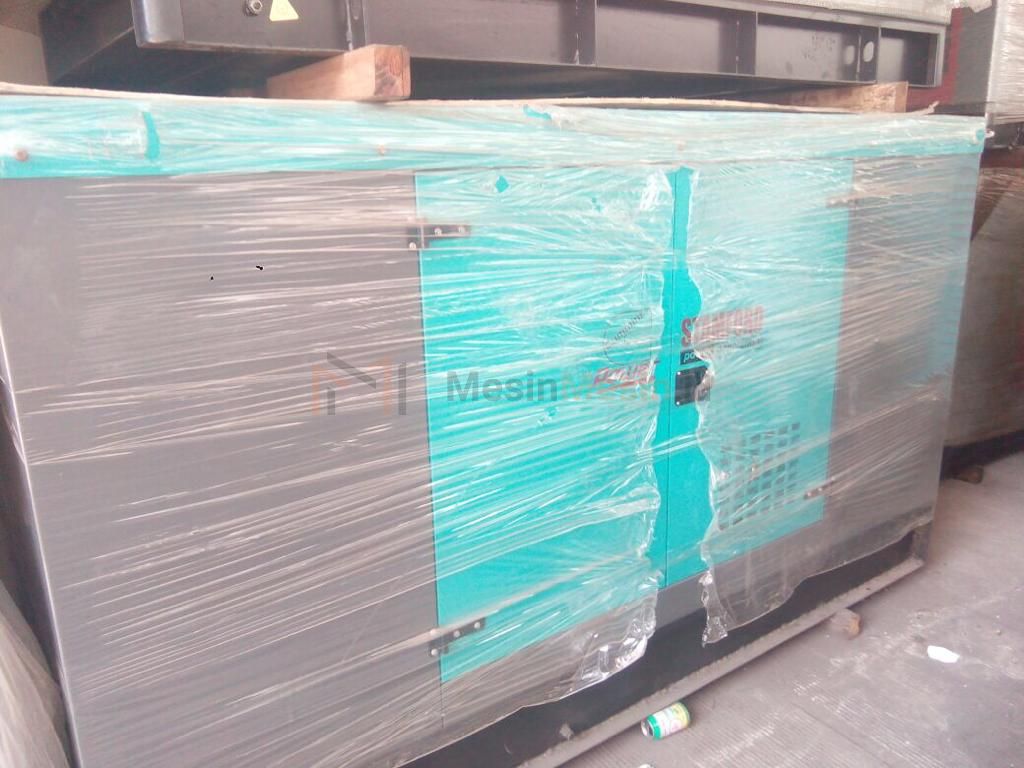

| MORRIS | MC-114S | |
| 12h Rated Power (KW) | 91 | |
| 12h Rated Power (KVA) | 114 | |
| Engine Cummins | Type | 6BTA5,9-G2 |
| Cylinder no. | 6L | |
| Cons. Full | 23,8L/h | |
| Starting Mode | Electric Starting | |
| Cooling Mode | Closed Circulation Water Cooling | |
| Altenator Stamford | Type | UCI274D |
| 12h Power (kw) | 96 | |
| Rated Voltage(V) | 230/400V | |
| Rated Freq (Hz) | 50 HZ | |
| Voltage Regulation System | AVR | |
| Silent Diesel Generator | Rated speed (r/min) | 1500 RPM |
| Noise (Db) | <75DB> | |
| Connection method | Three phase and four wire | |
| Starting Mode | Electric Start | |
| Standard parts | Standars engine instrumentation,Automatic Tranfer System (ATS),Voltmeter,amperage meter,frequency meter,indicator,emergency stop switch,hourmeter,battery,the bottom fuel tank | |
| Length (mm) | 3050 | |
| Width (mm) | 1200 | |
| Heigth (mm) | 1800 | |
| N W (Kg) | 2000 | |
